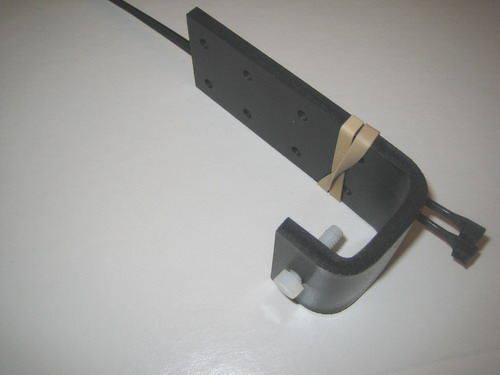

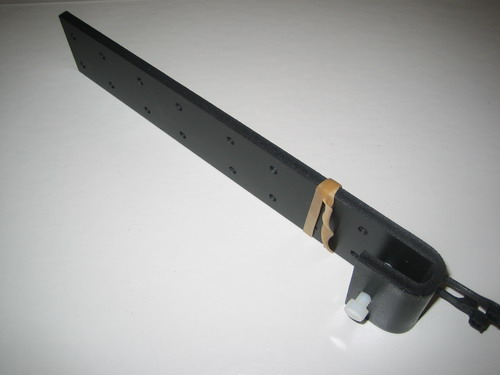

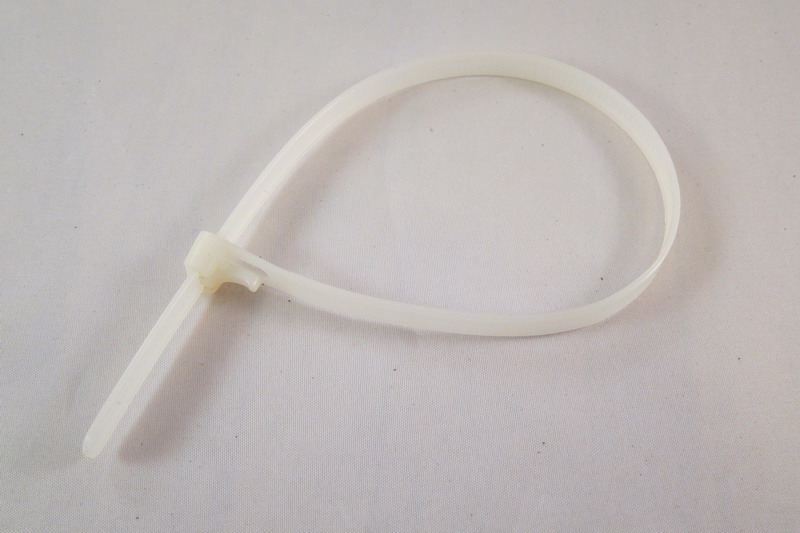

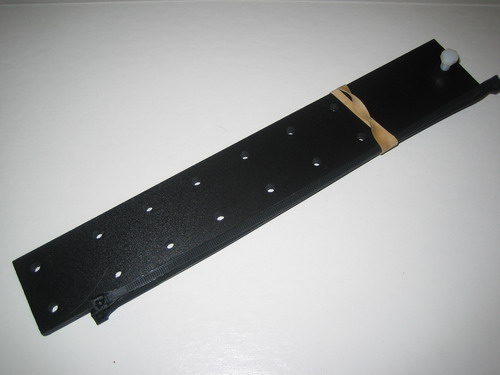

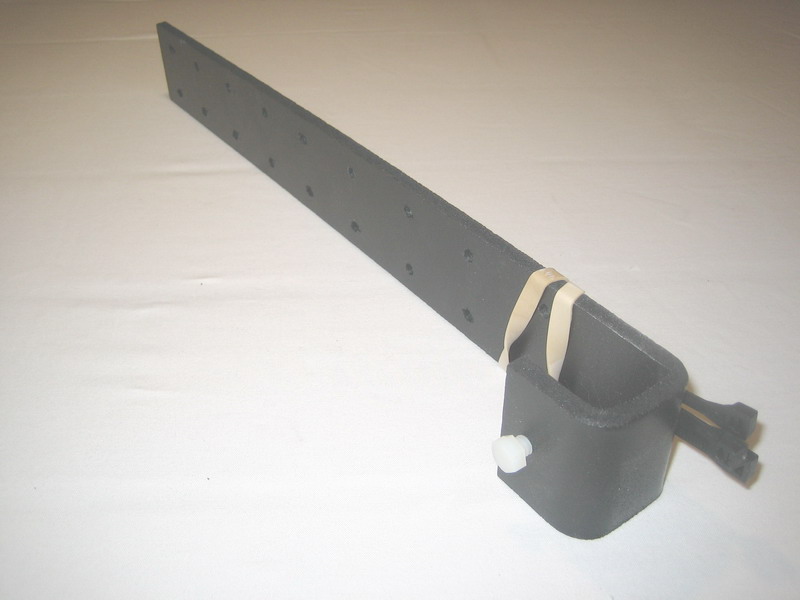

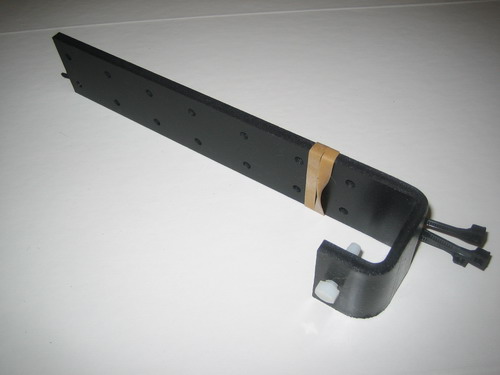

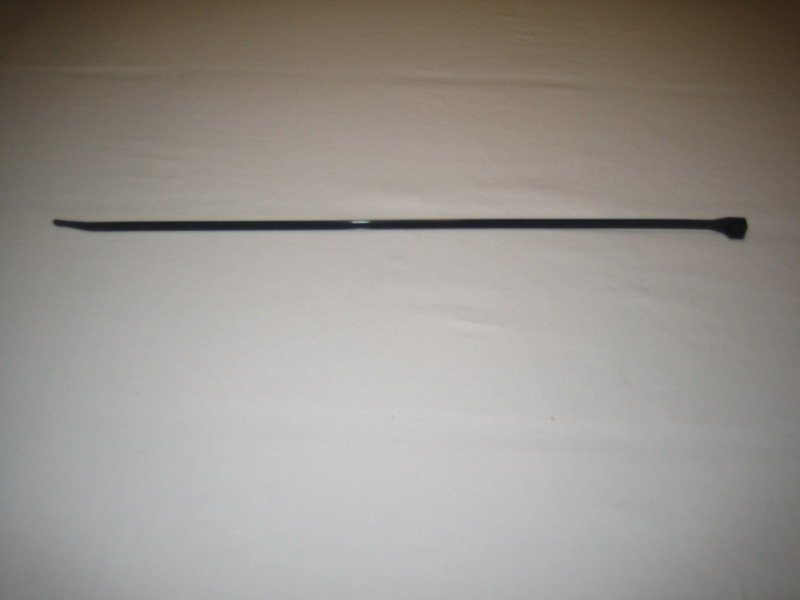

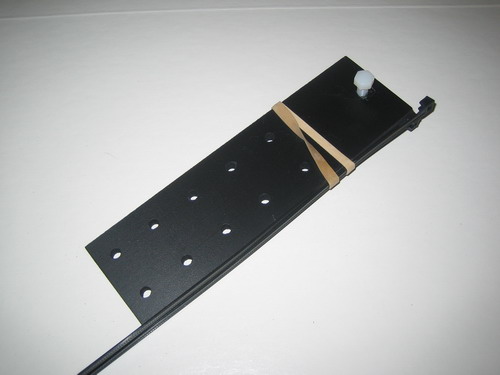

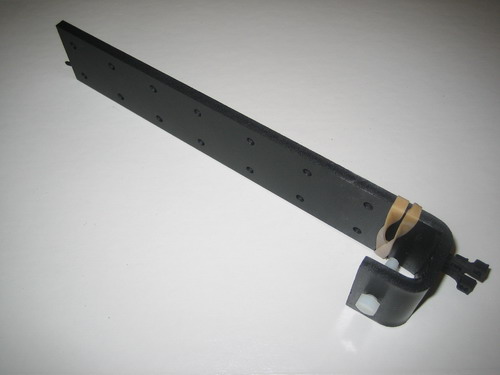

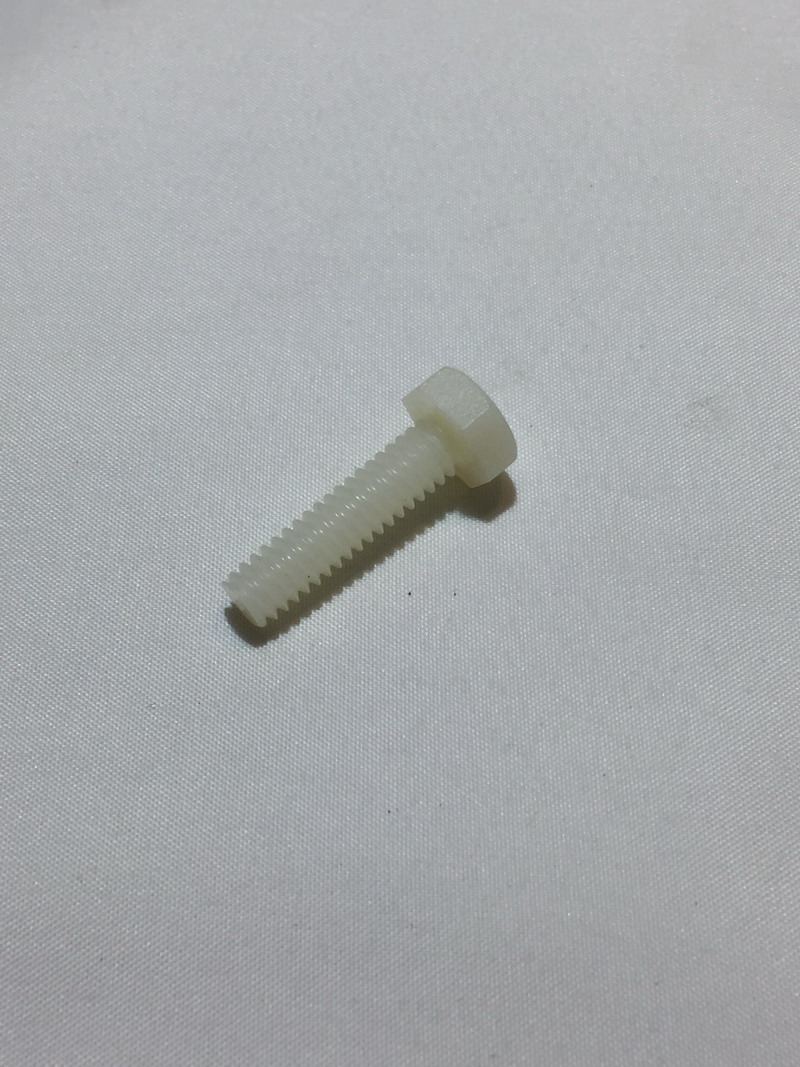

Mounting brackets hang over the edge of your tank and secure the float switches using cable ties. A set screw secures it to you tank. Measure the max thickness of the top 1" of your tank to determine which size you need.

If a bracket extends x" into your tank you can set your water level to x-1" (except for the Nano Lower switch which allows you to set your water level to x+1").

You can attach two floats on the same bracket if your water level is 4+" down from the top of your tank. This allows space for the fail-safe switch to be mounted above the primary switch.

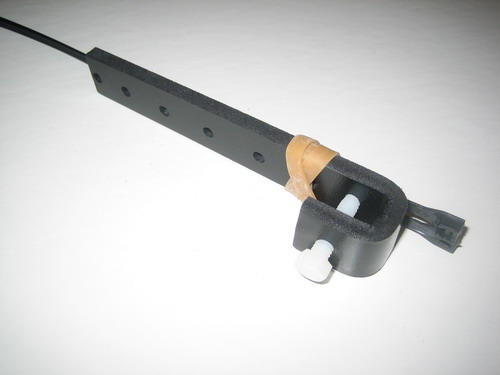

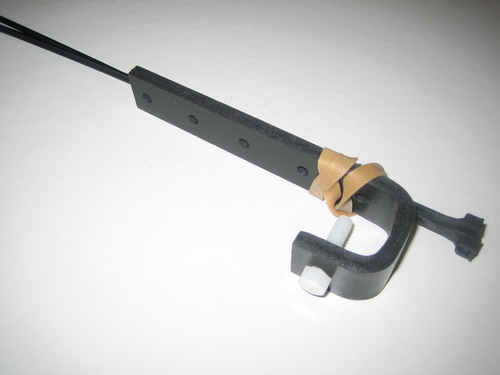

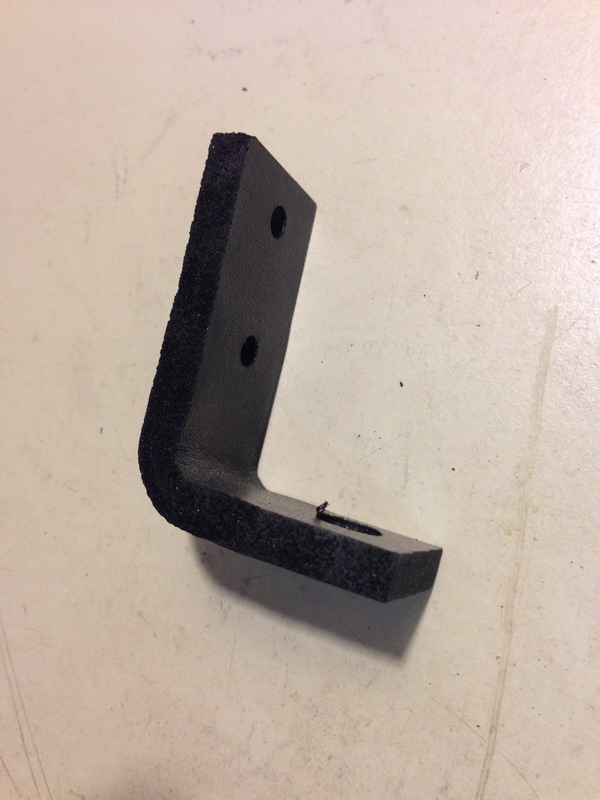

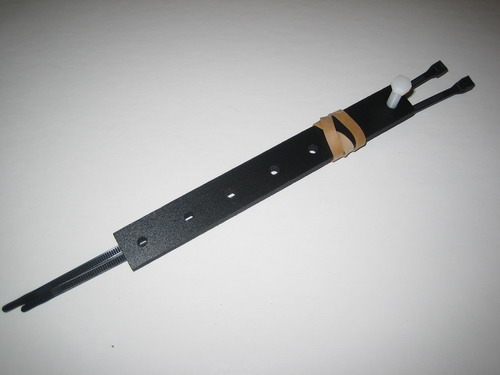

Nano brackets have a tighter hole spacing. You can attach nano floats on standard brackets however the holes may not align and you may need to drill new holes in the bracket.

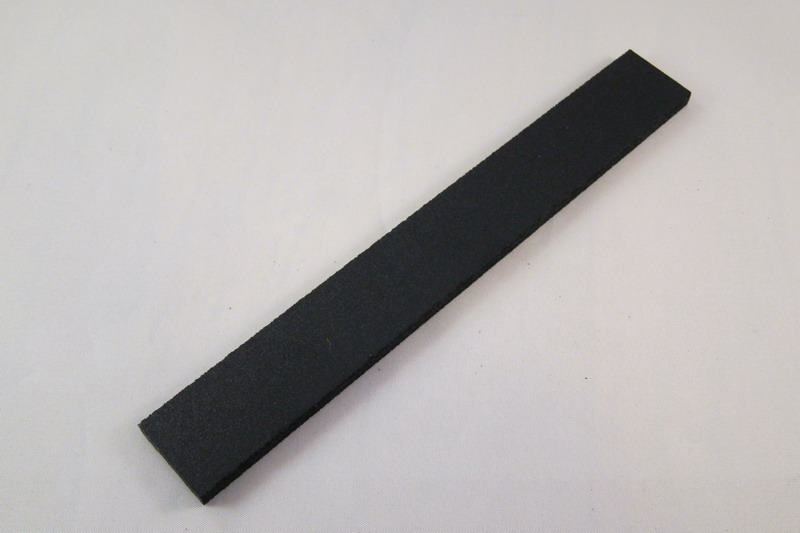

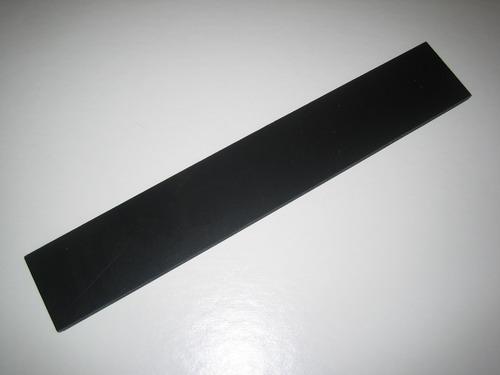

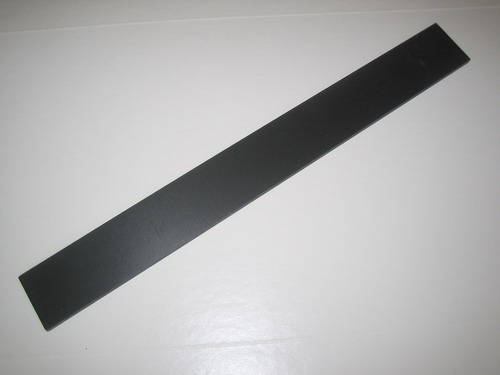

We can custom bend a bracket for you (see the 'custom' link on left) or you can bend one yourself. To bend, slowly heat the plastic using a heat gun or propane/butane torch, when it softens, bend into position and hold till it cools. You can easily drill or cut the plastic if you need to customize it to better suit your needs.
