Solenoid Valves

A solenoid valve allows you to fill your tank directly from your plumbing system which eliminates the need for an ATO reservoir. Normally closed valves are used for autotopoff, they open when powered, and are closed when not powered. An ATO controller is normally used to power a solenoid valve, but you could also power it with a programmable timer along with more frequent monitoring

If you install the solenoid valve on your RO's output you will need an auto shutoff valve and check valve on your RO system to prevent it from generating wastewater when the solenoid is closed.

Direction matters! There is an indicator on all valves that shows the water flow direction.

Using a solenoid valve means connecting your tank to an endless supply of water, therefore some type of fail-safe protection is recommended. Use a double switch controller instead of a single or two single switch controllers in series instead of a double, two solenoid valves in series, a mechanical float valve as a backup to the solenoid valve, a timer to limit the ATO so it only runs for a few minutes a few times per day, a water alarm to alert you if a water is detected on your floor, a flowlok to shutoff the water if water is detected on your floor, etc.


12v Solenoid Valves

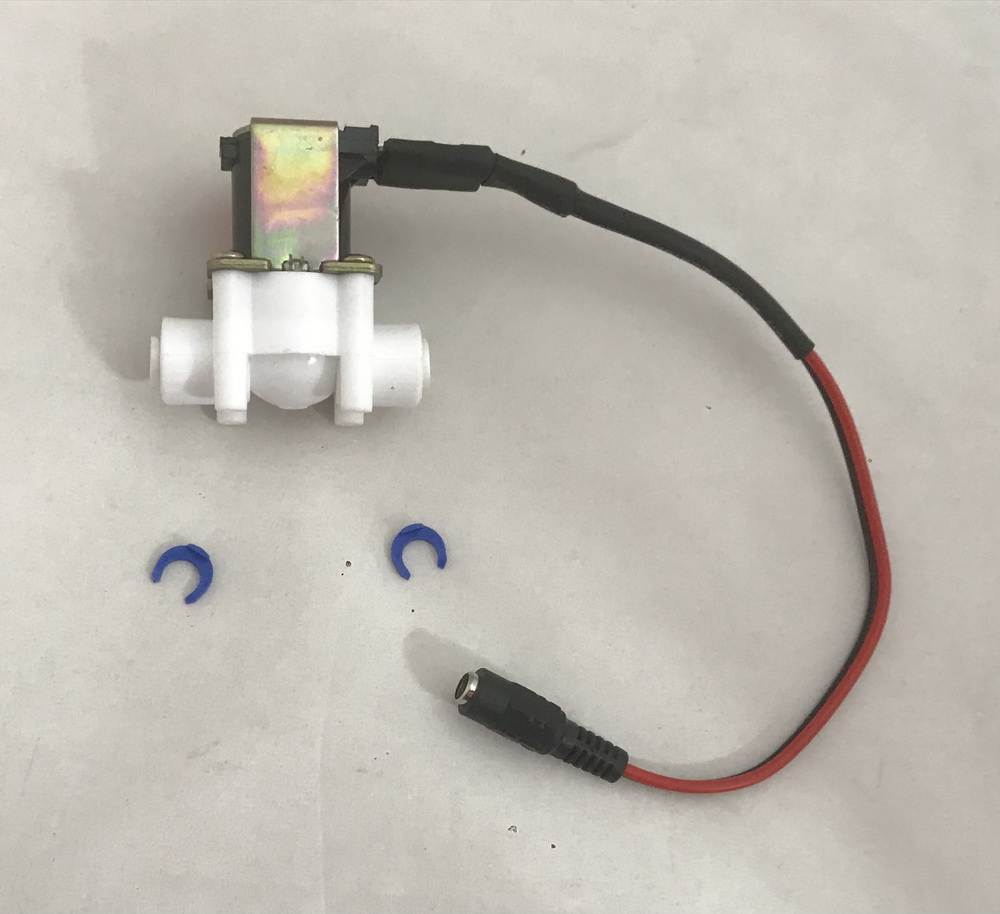

12v Normally Closed
Opens when powered, 12v Female DC Connector. Plastic valve body with stainless steel parts. 1/4" or 3/8" Quick Connect Fittings. Collet lock clips included with 1/4" size only.
$15
Fittings:
12v Normally Open
Closes when powered, 12v Female DC Connector. Plastic valve body with stainless steel parts. 1/4" or 3/8" Quick Connect Fittings. Collet lock clips included with 1/4" size only.
$17
Fittings:

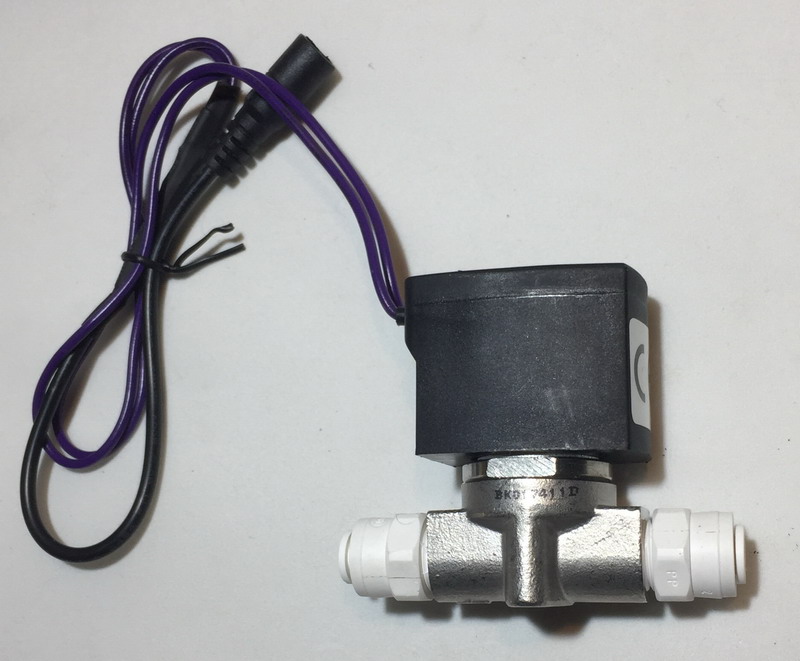

12v Stainless Steel
Normally Closed, Stainless steel valve body with stainless steel parts, 1/4" Female NPT Ports, 600mA, 7.2 watts, 12v Female DC Connector
$35
Fittings:
12v Noryl
Normally Closed, Noryl plastic composite valve body with stainless steel ports, 1/2" female NPT Ports, 350mA, 4.2 watts, 12v Female DC Connector
$37
Fittings:

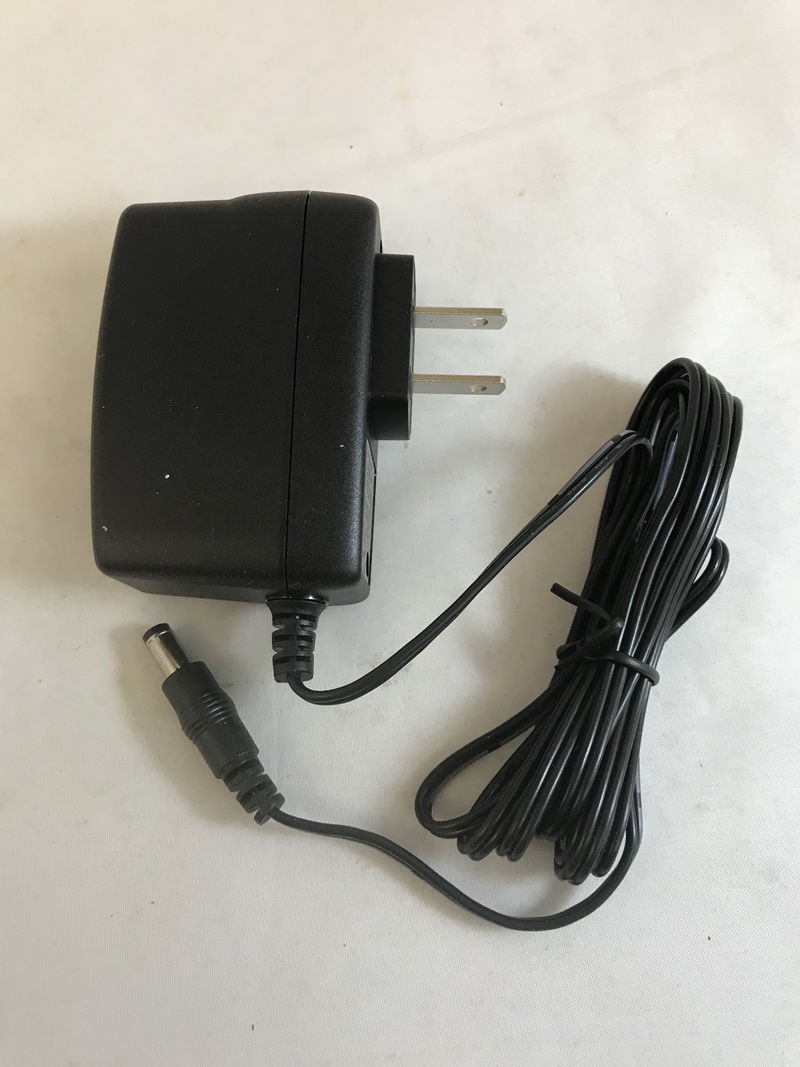

12vdc power supply
1000mA
$5

120v Normally Closed

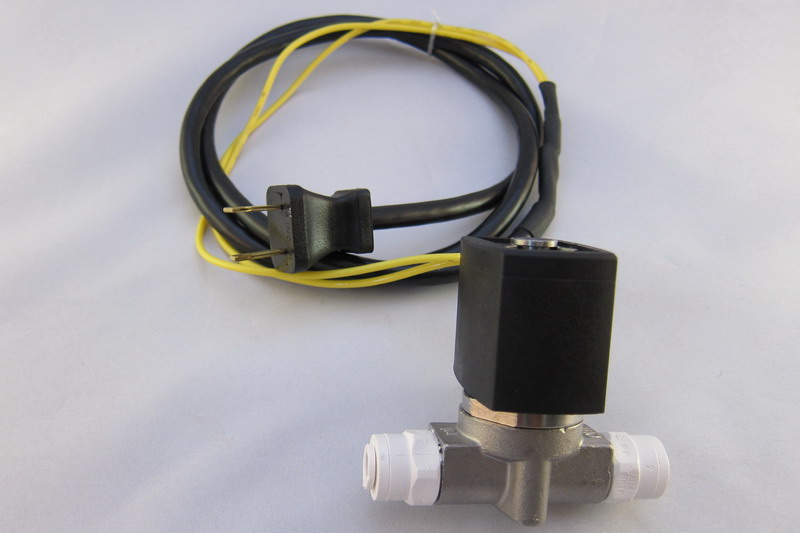

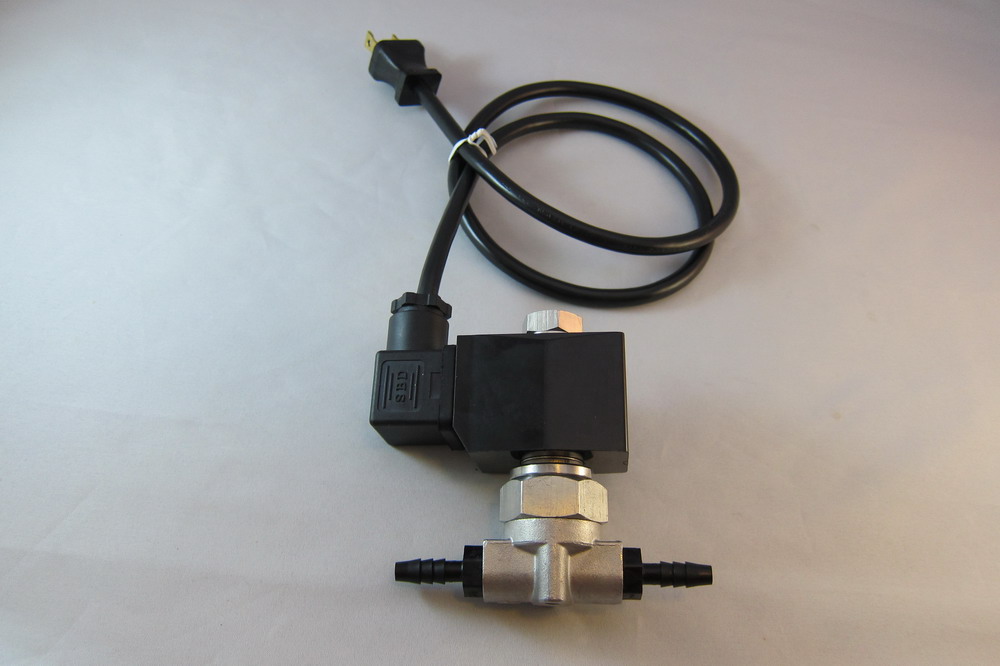

1/4" Stainless
Normally Closed, 0-115 psi, 1/4" NPT Female Ports, 0.125" orifice, 0.4 Cv value, stainless body with stainless parts, Can be mounted using two 5mm screws (not included), 3 foot power cord, 3" wide x 2.5" high x 2" deep
$35
Fittings:

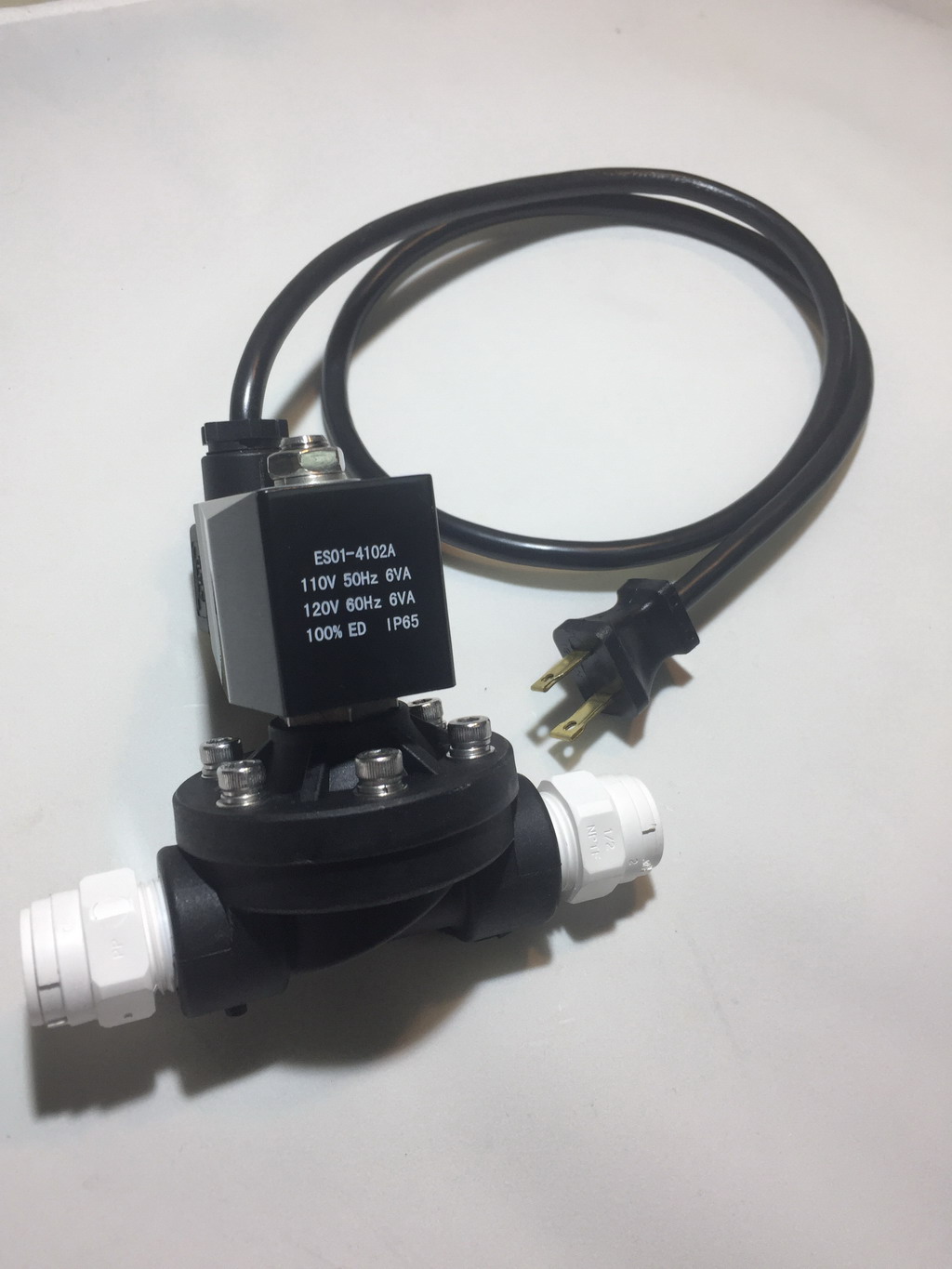

1/2" Nylon
Normally Closed, nylon Body with stainless parts, 3' power cord. The coil converts AC voltage to DC to eliminate buzzing and drops the internal voltage after the valve opens to making the coil run cooler and more efficient. Coiil draws ~12 watts.
$45
Fittings:

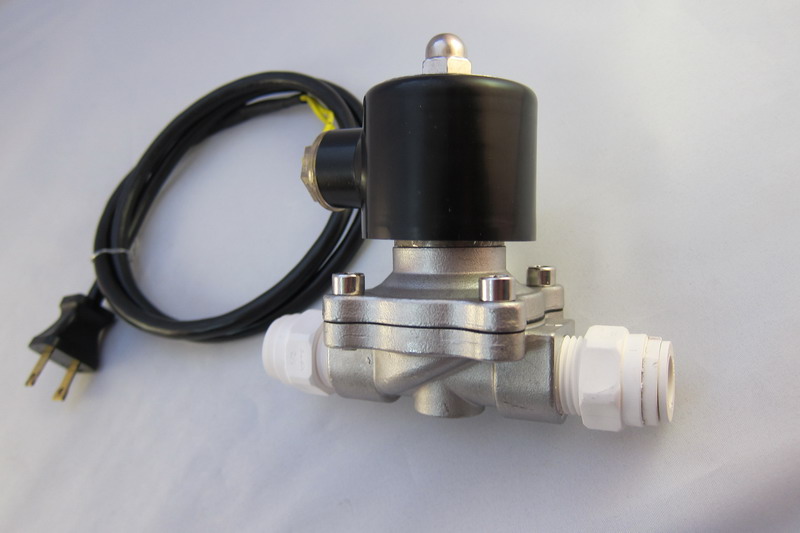

1/2" Stainless
Normally Closed, 0-150 psi, 1/2" Ports, 0.63" orifice, 4.8 Cv value, stainless body w/ stainless parts, 3 foot power cord. 4" wide x 4.5" high x 2.2" deep. Coil draws ~18 watts.
$45
Fittings:

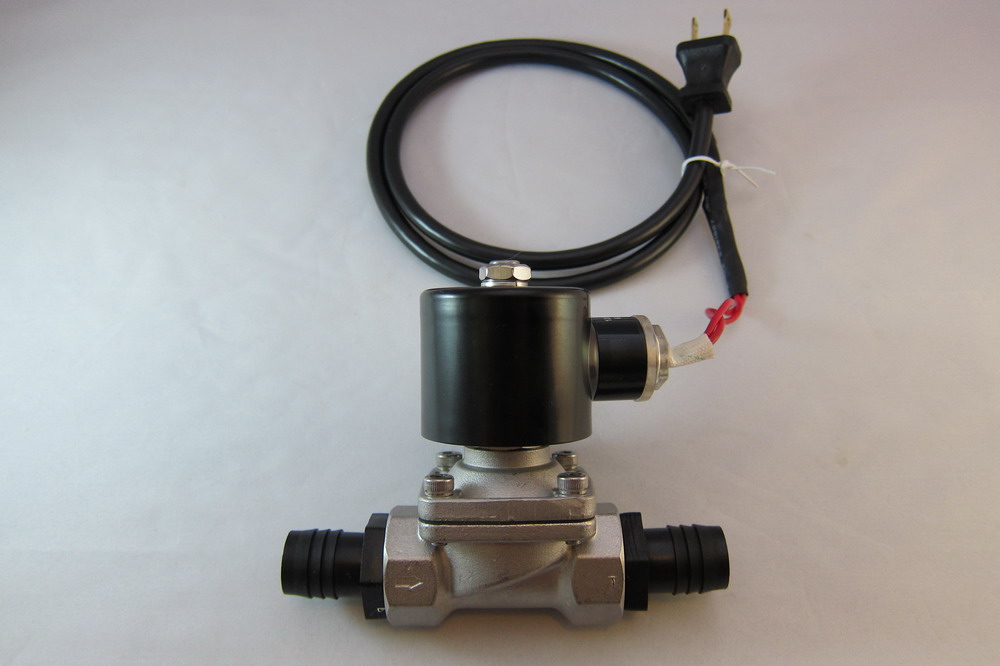

3/4" Stainless
0-150 psi, 3/4" Ports, 0.78" orifice, 7.6 Cv value, stainless body w/ stainless parts, 3 foot power cord. 7" wide x 4" high x 2.2" deep

1 week lead time
$65
Fittings:

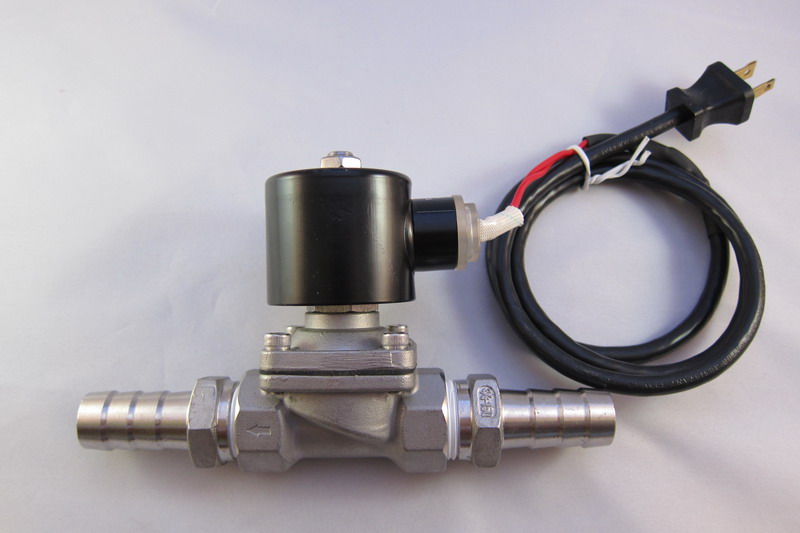

3/4" Stainless valve with 3/4" Stainless Barb Fittings

1 week lead time
$75

120v Normally Open


1/4" Normally Open
0-150 psi, 1/4" Female NPT Ports, 0.098" orifice, 0.23 Cv value, stainless body with stainless parts, 3 foot power cord. Coil draws ~12 watts.
$50
Fittings:

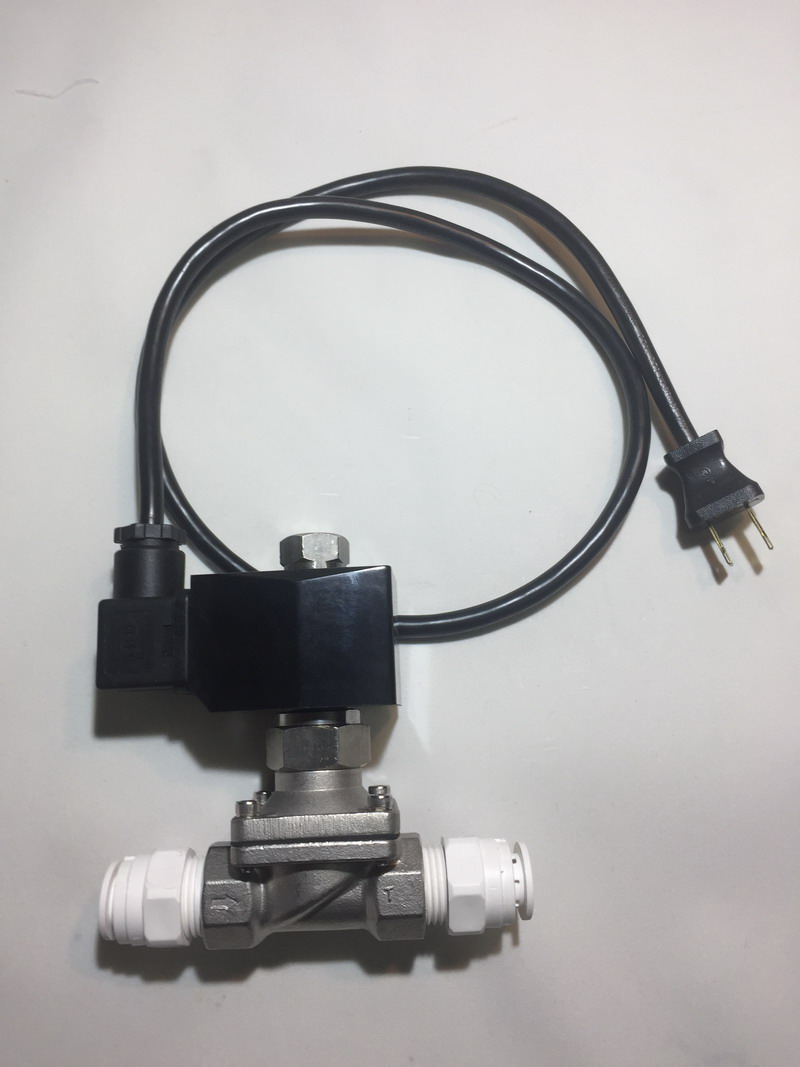

1/2" Normally Open
0-150psi, 1/2" Female NPT Ports, 3' Power Cord, stainless body w/ stainless parts. The coil converts AC voltage to DC to eliminate buzzing and drops the internal voltage after the valve opens to making the coil run cooler and more efficient. Coil draws ~12 watts.
$65
Fittings:

RO tubing

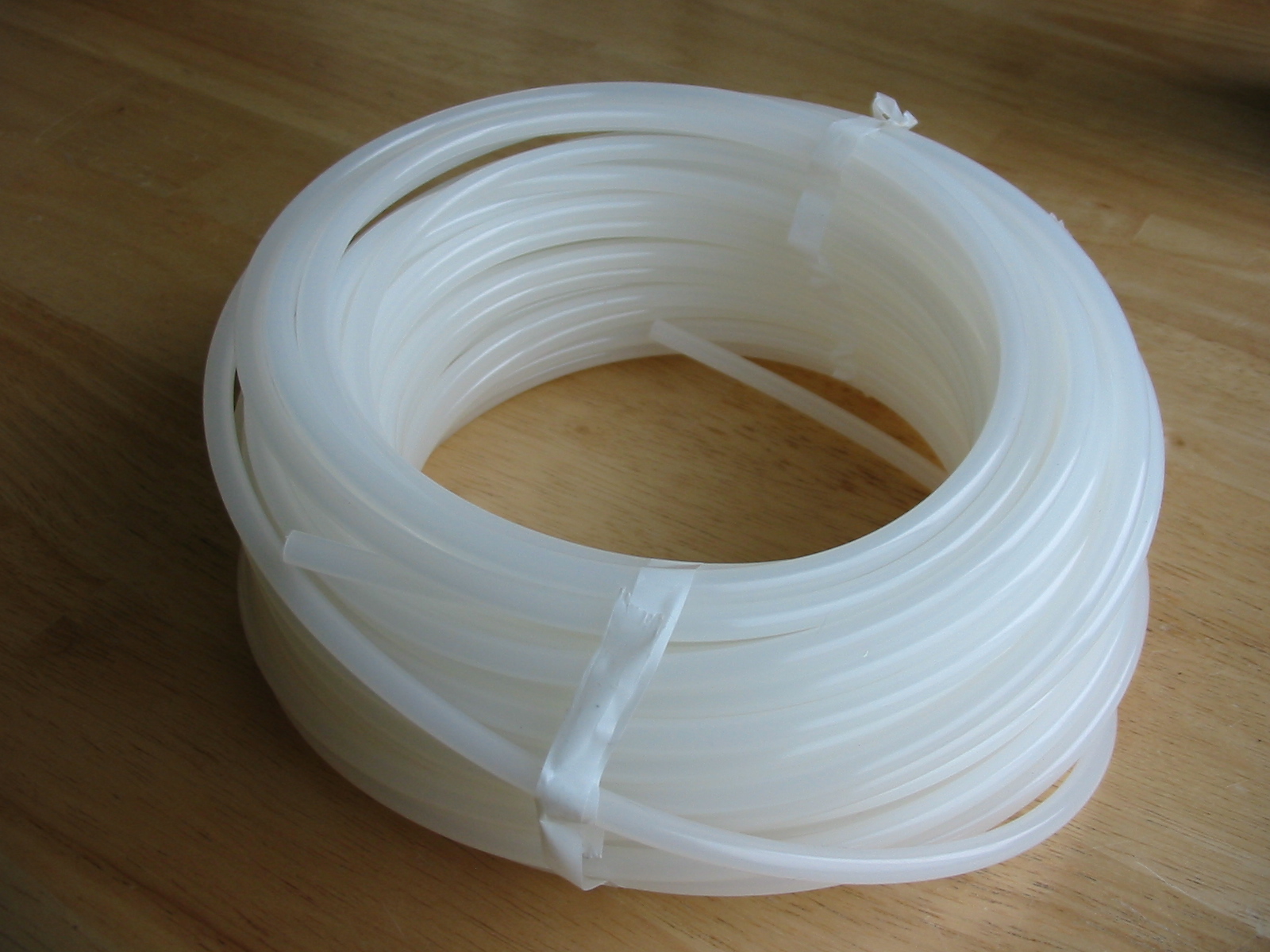

1/4" OD Tubing
ID 0.17". Commonly used in RO systems. 230psi @ 70F, 120psi @ 150F, LLDPE, natural color
$0.20/ft

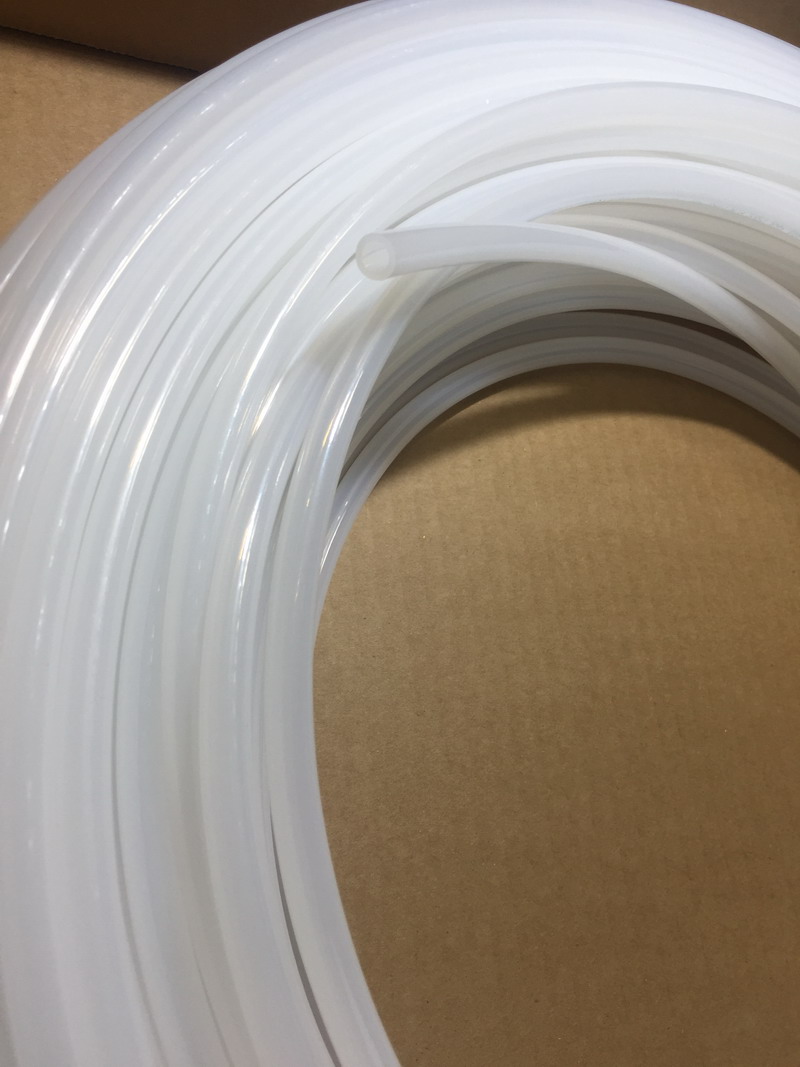

3/8" OD Tubing
ID 0.250". 230psi @ 70F, 120psi @ 150F, LLDPE, natural color
$0.40/ft

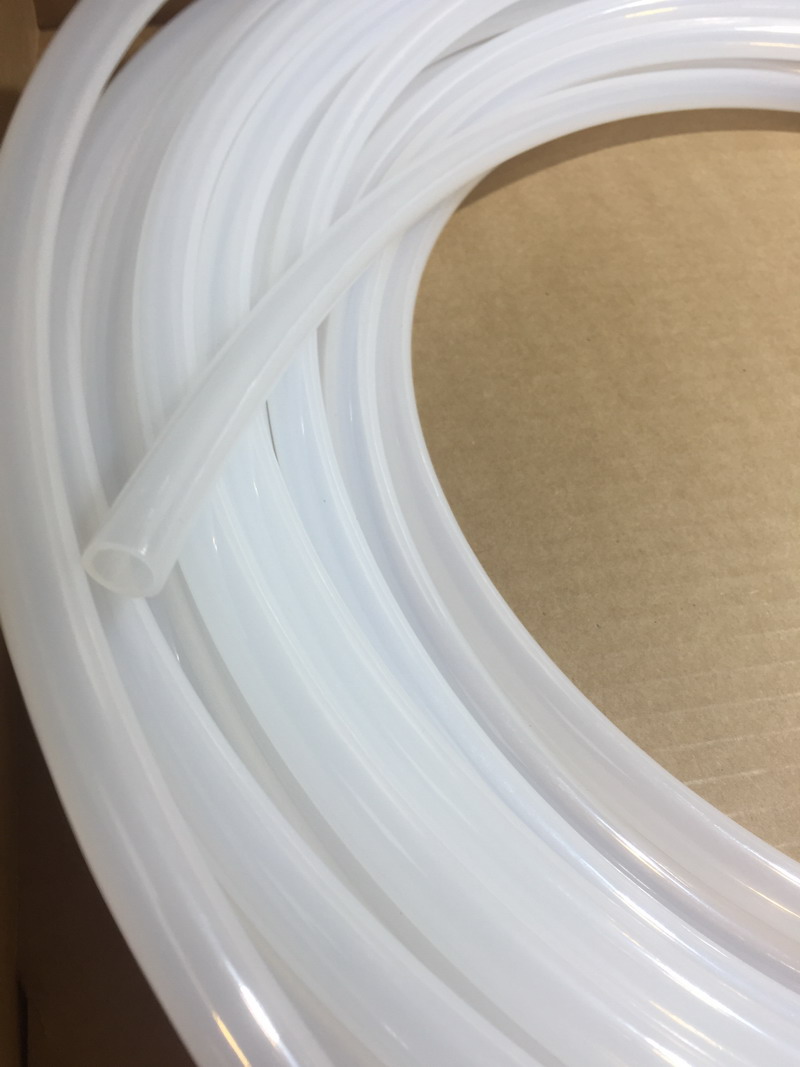

1/2" OD Tubing
ID 0.375". 150psi @ 70F, 90psi @ 150F, LLDPE, natural color
$0.60/ft

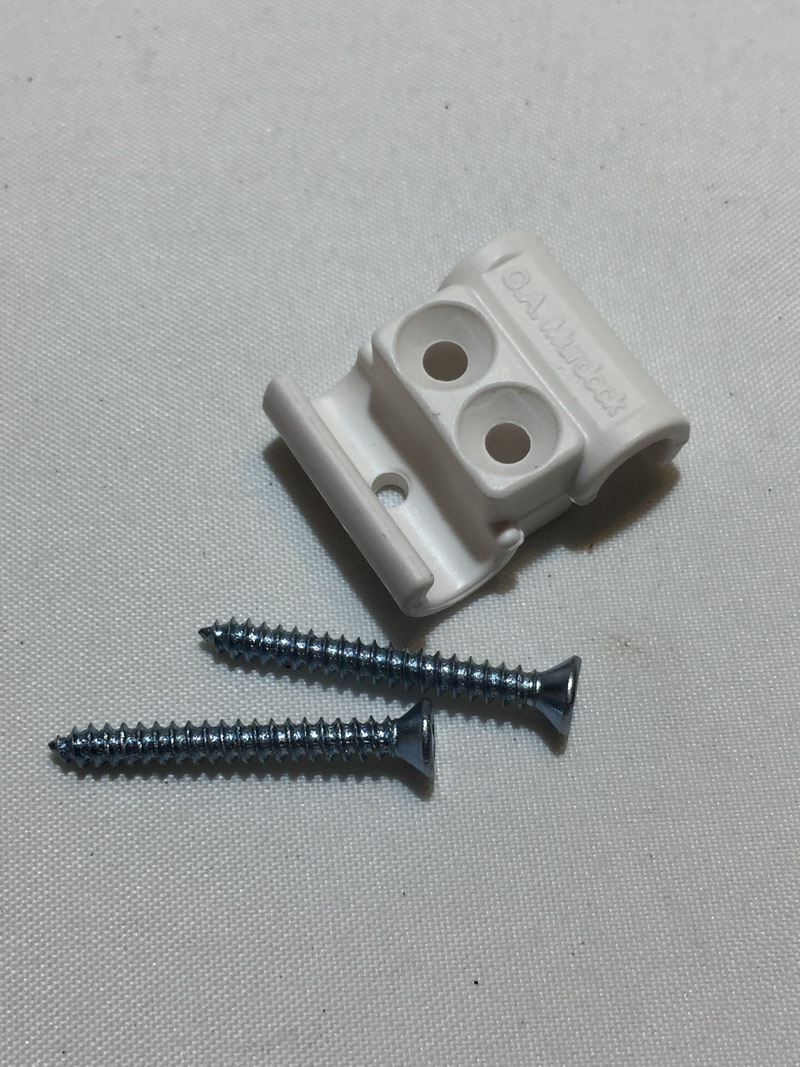

1/4" OD Clip
Holds 2 1/4" tubes, includes 2 screws.
$1/ea

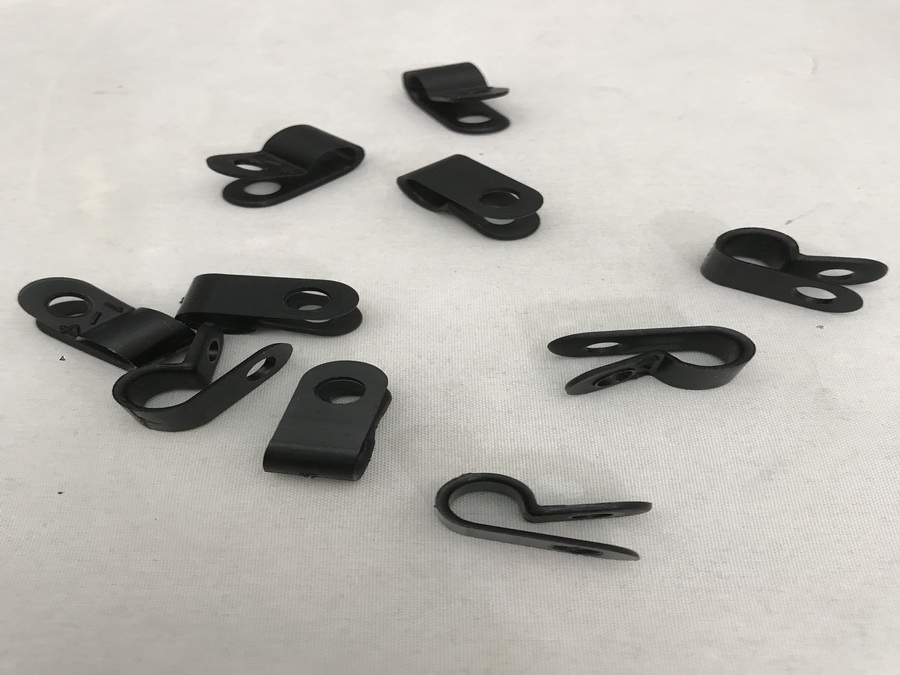

1/4" Black Nylon Tubing Clamps
Includes 4 clamps.
4pcs/$1

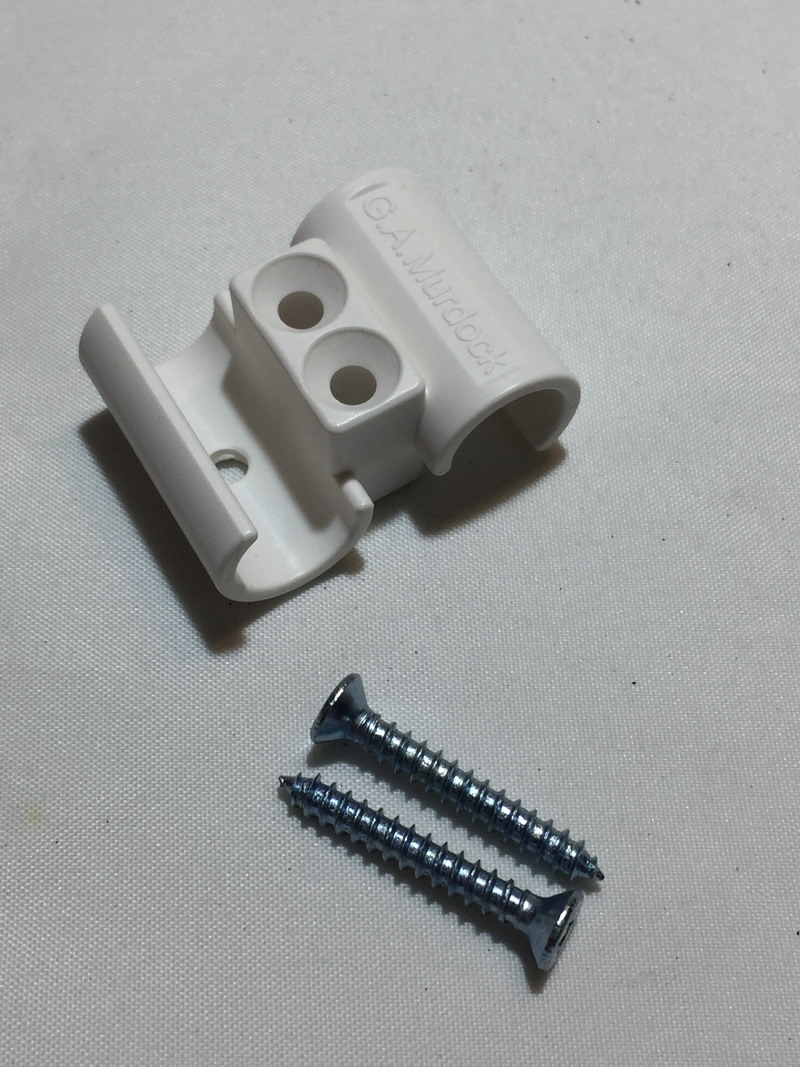

3/8" OD Clip
Holds 2 tubes, includes 2 screws.
$1.10/ea
3/8" Black Nylon Tubing Clamps
Includes 4 clamps.
4pcs/$1

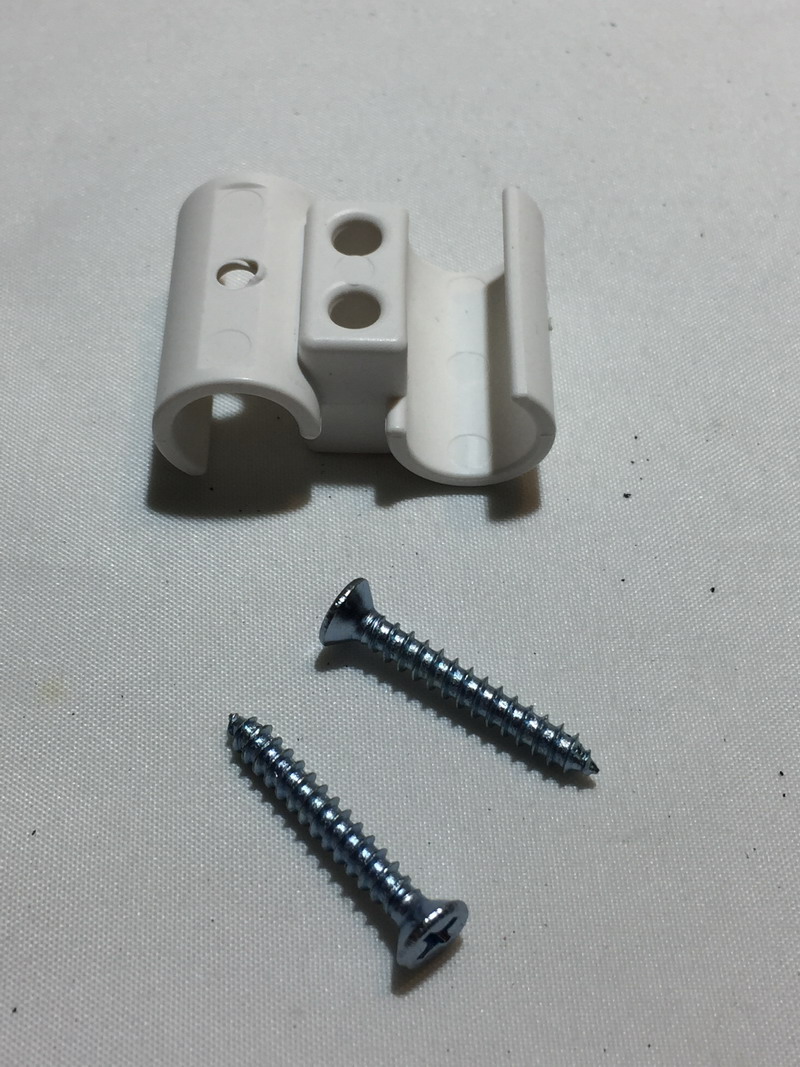

1/2" OD Clip
Holds 2 tubes, includes 2 screws.
$1.25/ea
