ATO Controllers |
Custom Controller Options |
|||
| Latching Upgrade This is an add-on for double switch controllers. It makes the controller fill from the bottom float switch to the top float switch allowing you set how much water gets added to your tank each time the controller cycles on. You can also reverse the latching functionality by removing both floats and reversing them so the magnets inside the floats are at the bottom. This will make the latching controller turn on power when both floats go high and turn off when both floats are low. This is useful for emptying your tank from the top float to the bottom float. This upgrade can only be added to controllers with 2 or more float switches. |
$5 | ||
| Custom Bracket Bend Bend the bracket to a different size . |
$1 | ||
 |

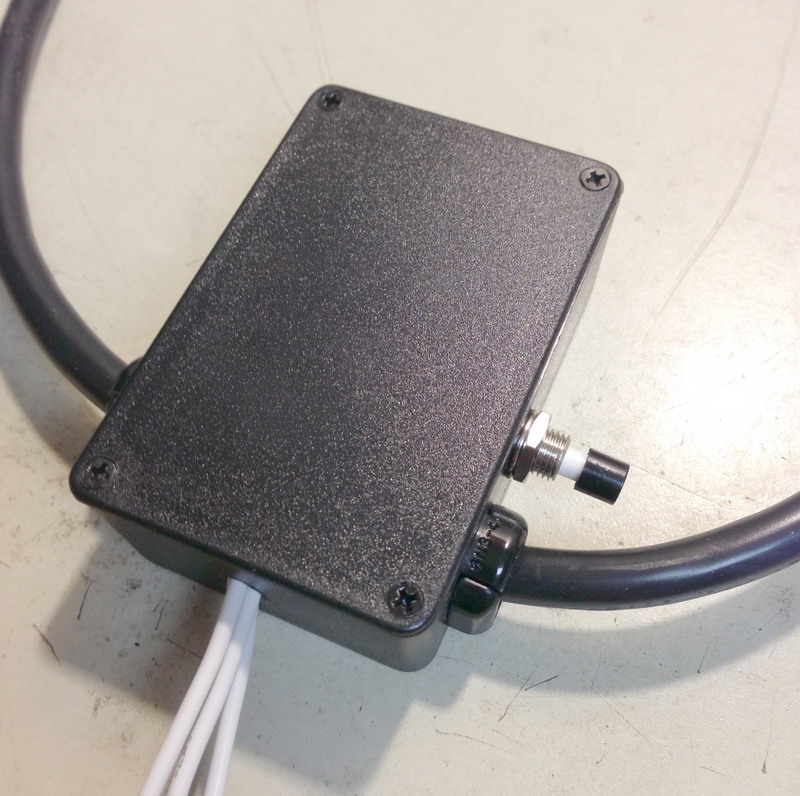

Manual Reset Upgrade This upgrade adds a button that must be pressed to 'reset' the controller after your water level activates it. This is commonly used to prevent the controller from cycling power on and off continually in the event your overflow is partially clogged or similar. You can reverse the operation by reversing the float. When the magnets are up, the controller turns on power when the float is high and you push the button. When the magnets are down, the controller turns on power when the float is down and you push the button. |
$35 | |
 |

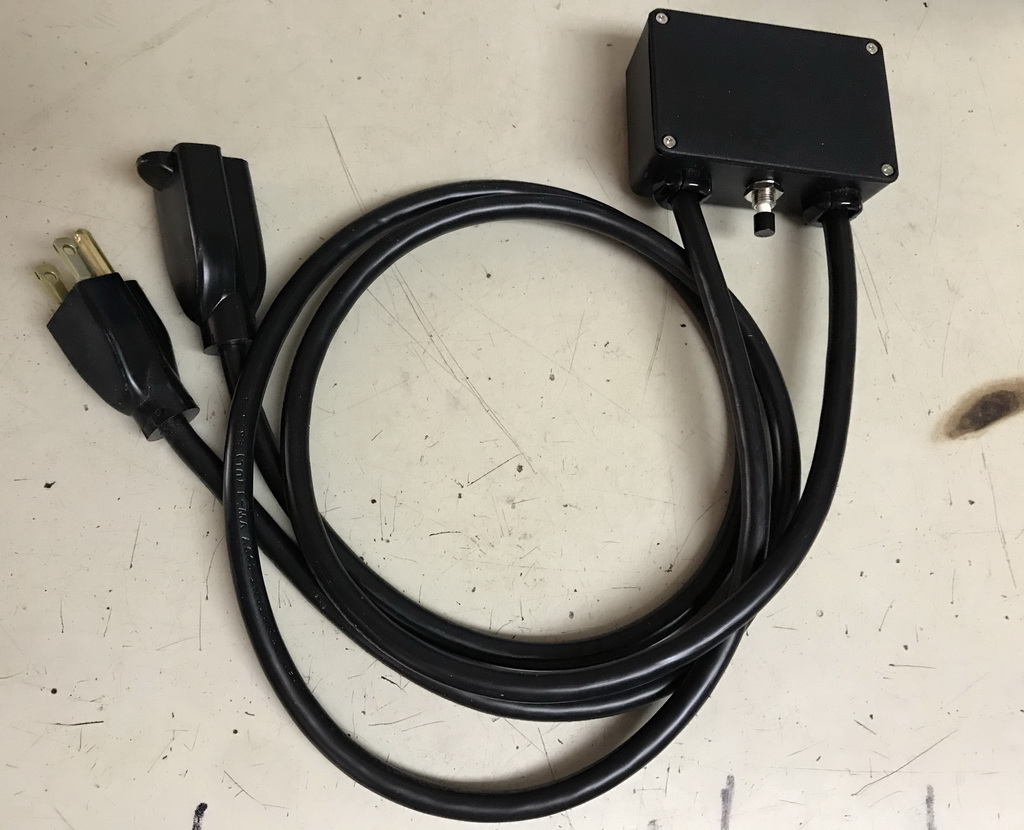

Timer Controller Push the button and this controller turns off power for 0-60 minutes and then power turns back on. Useful for feeding your tank. Remove box lid and turn dial on top of relay to adjust the delay. Max Load 5 Amps, 600 Watts. |
$65 | |
 |

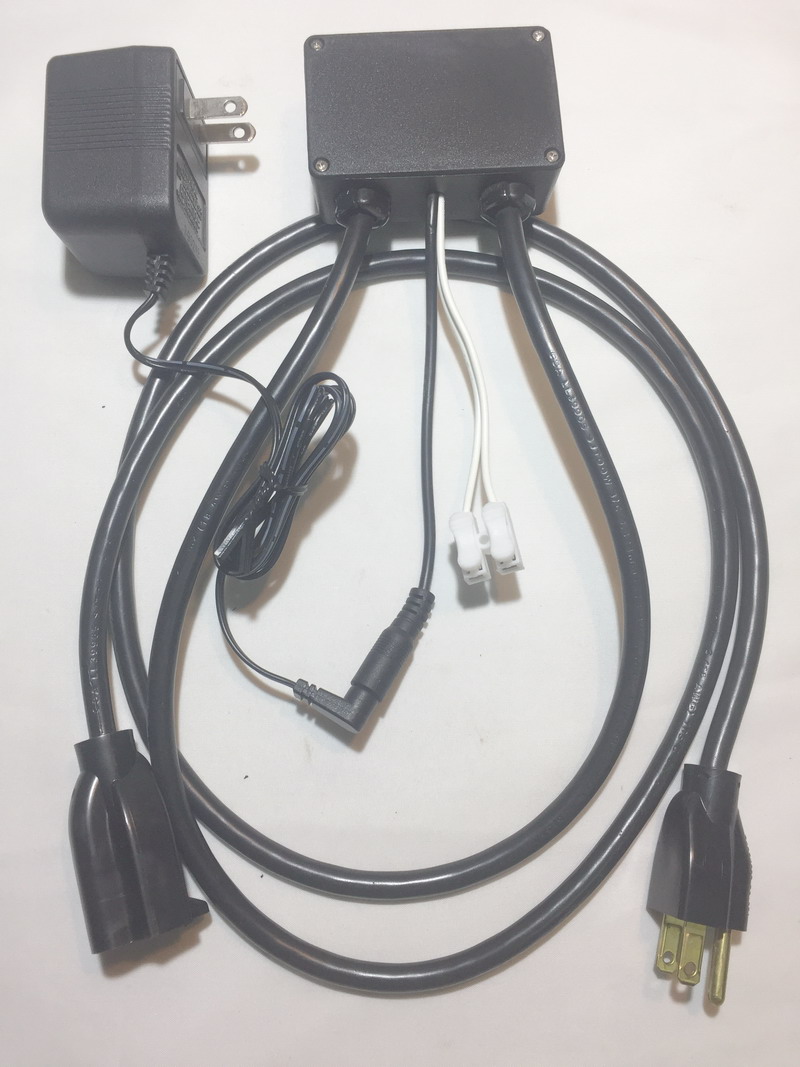

Time Delay Controller features an adjustable time delay relay. The controller will turn on power after a time delay when triggered by the float switch(es). Remove box lid and turn dial on top of relay to adjust the delay. Max Load 5A. Float switches sold separately. You can get it with either a white quick connector (shown in pic) for attaching bare wire float switches or with a black JST connector for attaching our LongWire float switches. |
$75 | |
  |

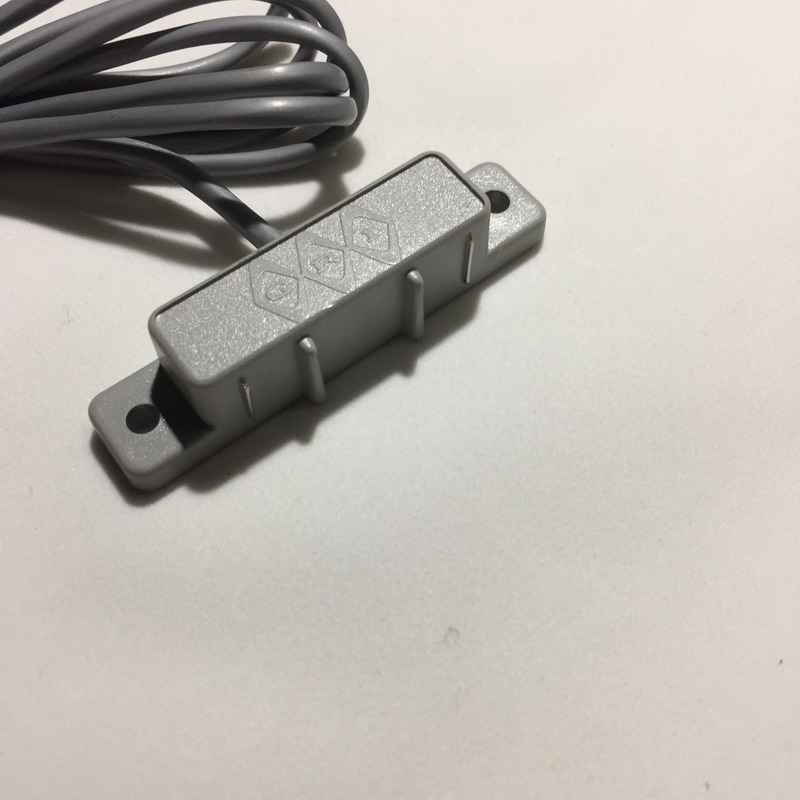

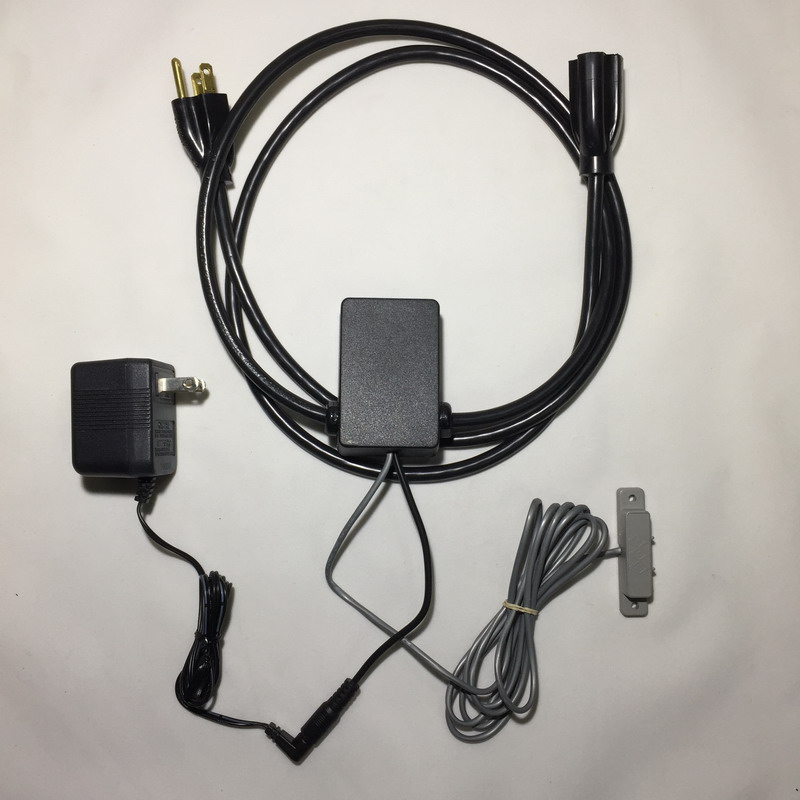

GRI Controller This controller uses a GRI water sensor instead of a float switch to either turn power on or off when water is detected. The sensor is triggered by a moisture bridge across the sensor contacts. They can detect a layer of water as little as 1/16 of an inch in depth which makes them great as a fail-safe for detecting water on the floor. Sensor leads are 6 feet and they require a conductive liquid (they have a hard time detecting purified water). |
$55 | |
 |

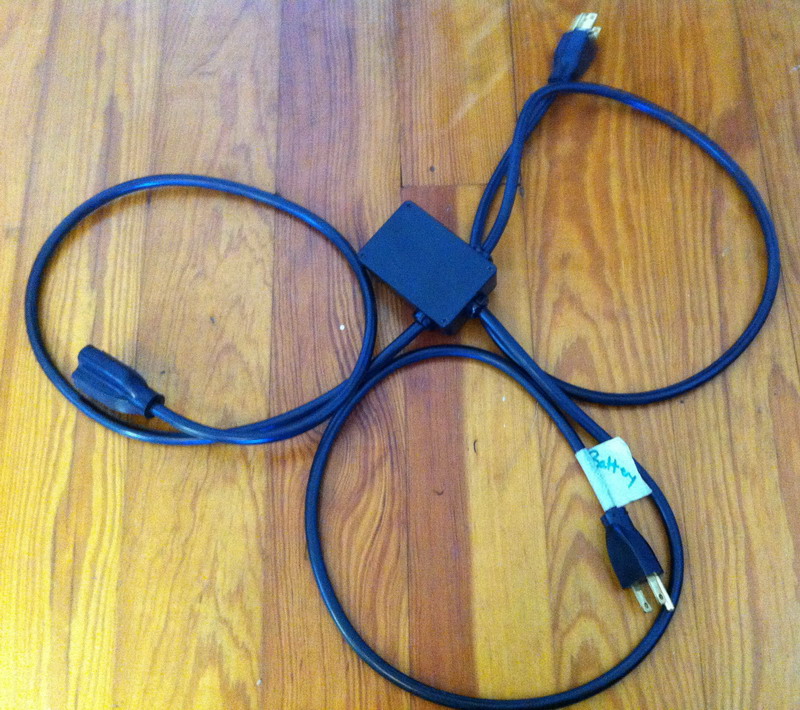

Battery Backup Controller This switches power between grid power and a battery backup during power outages. It has two power inputs and one power output. Plug one input into the wall and the one labeled 'battery' into your inverter. This can either power a device from the grid and switch to battery when the power goes out, or only turn on power from the battery backup during an outage. Max Load 10A. |
$45 | |
