LongWire controllers are an upgraded version of our standard controllers. They feature a low voltage float switch circuit with removable float switches that have longer wires.

You need float switches with a JST connector to mate to the controller (listed below). If you'd like to connect your own float switches check out the assembled DIY controller on our misc page.

Mounting Brackets Sold Separately!

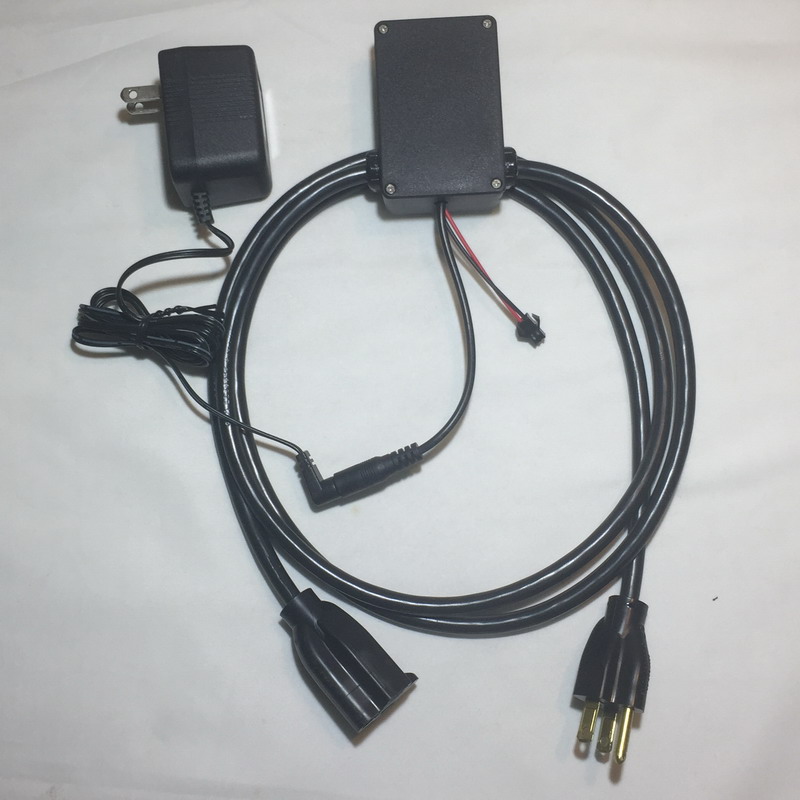

LongWire Single
One JST float switch connector
$30

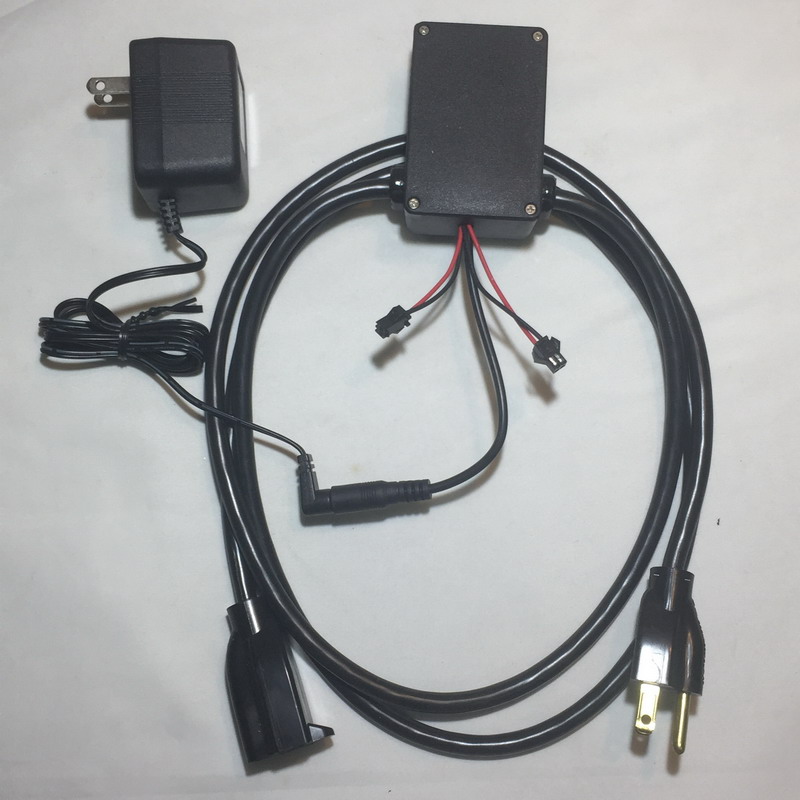

LongWire Double
Two JST float switch connectors. One float switch sets your water level, the other acts as a fail-safe.
$31
LongWire Triple
Three JST float switch connectors. One float switch sets your water level, the other two float switches act as fail-safes.
$32

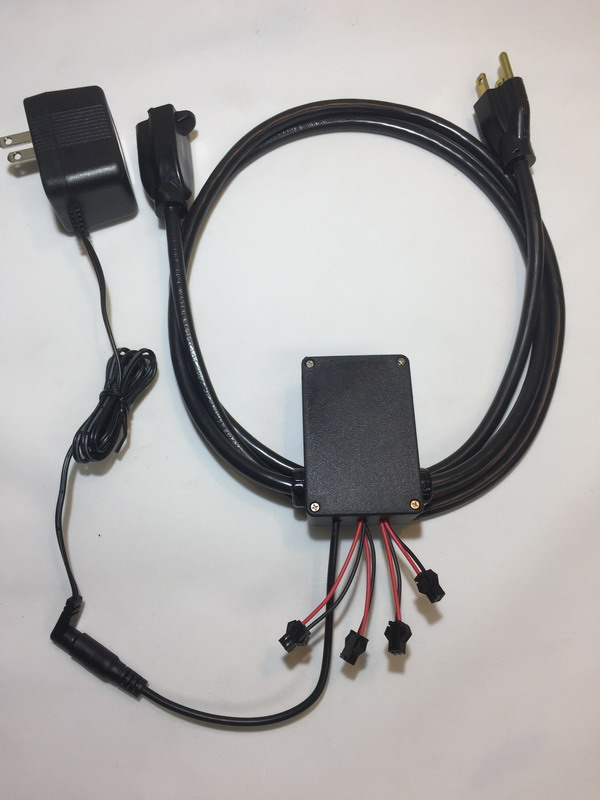

LongWire Quad
Four JST float switch connectors. One float switch sets your water level, the other three float switches act as fail-safes. You can also reverse the operation of a float switch for run-dry protection by installing the float upside down on the float switch.
$33

Long Wire Float Switches with JST connectors

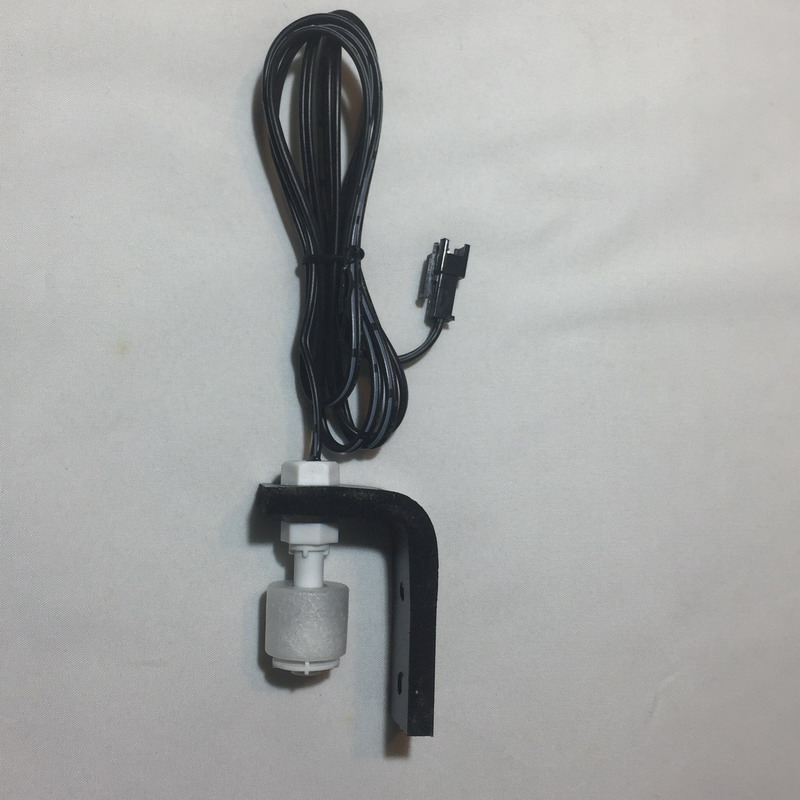

LongWire Upper
with JST connector

1.5" x 1" x 2"h. 48" leads. Bracket has 2 holes drilled in it for mounting. Email us if you'd like to reverse the bracket so it bends upward instead of downward.
$11

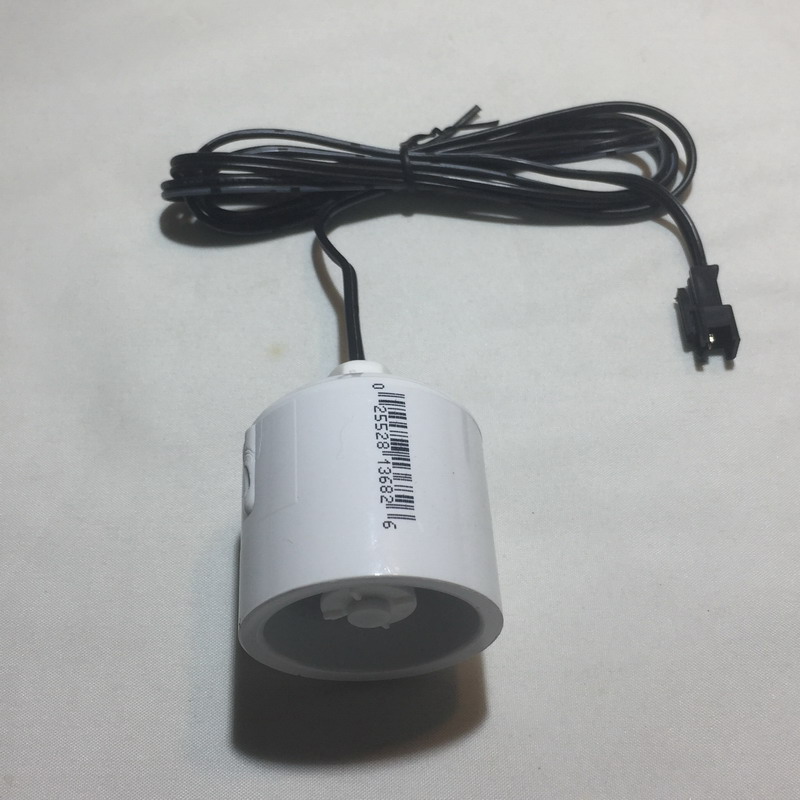

LongWire Lower
with JST connector

1.6" diameter x 1.9" high. 48" leads. Protective surround is open on bottom. Made from 1" PVC with 2 vent holes in the top.
$11

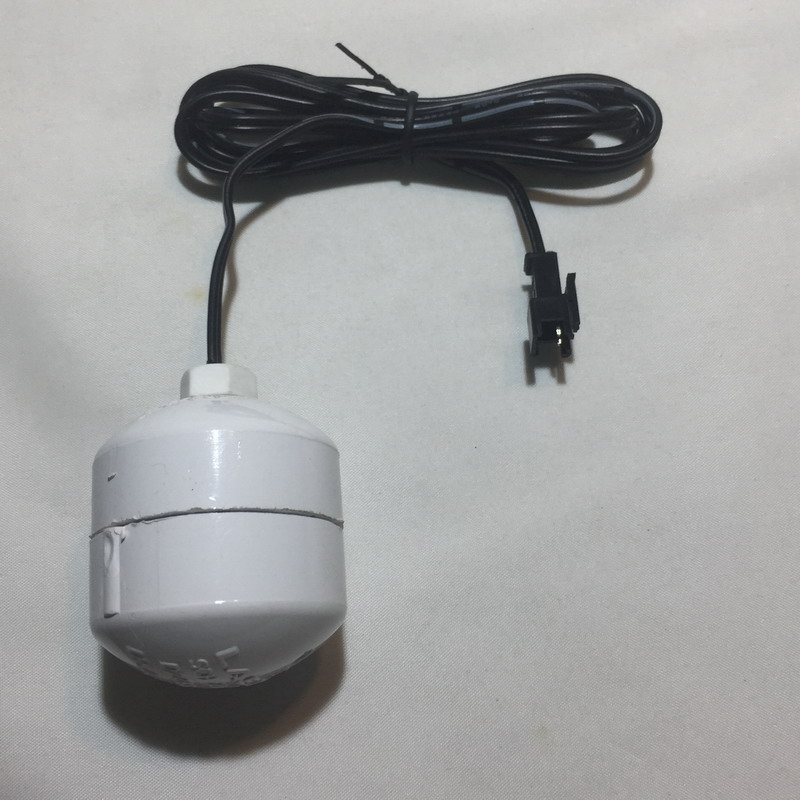

LongWire Full Surround
with JST connector

1.6" diameter x 2" high. 48" leads. Protective surround also has a bottom cover. Made from 1" PVC with 2 vent holes in top/bottom.
$14

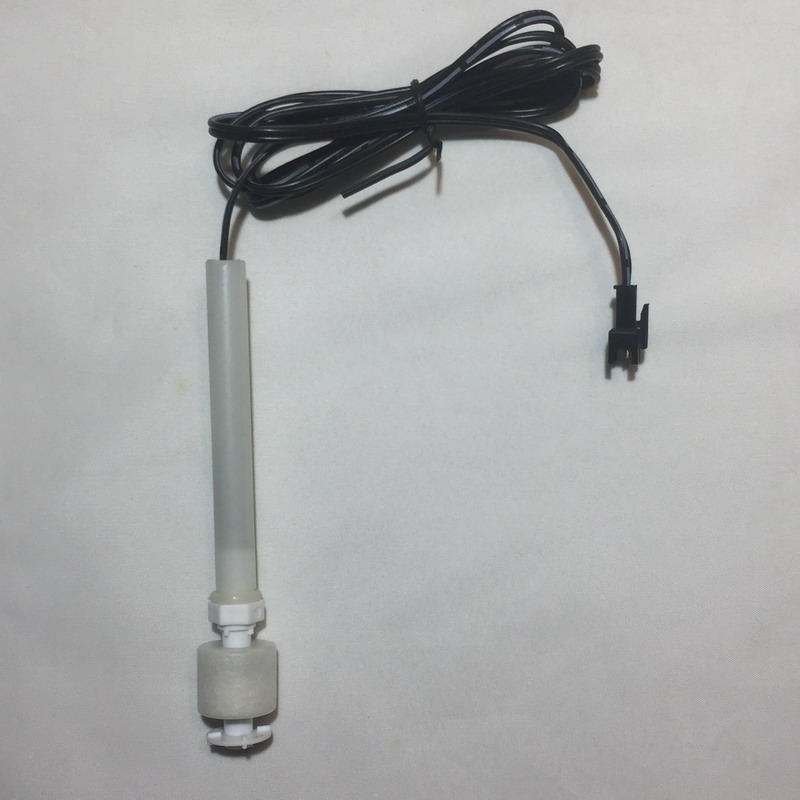

LongWire Skimmer
with JST connector

3" stem mounts through 3/8" hole in skimmer cup lid. Secure with a cable tie above and below skimmer lid. 48" leads. Custom length stems available.
$11

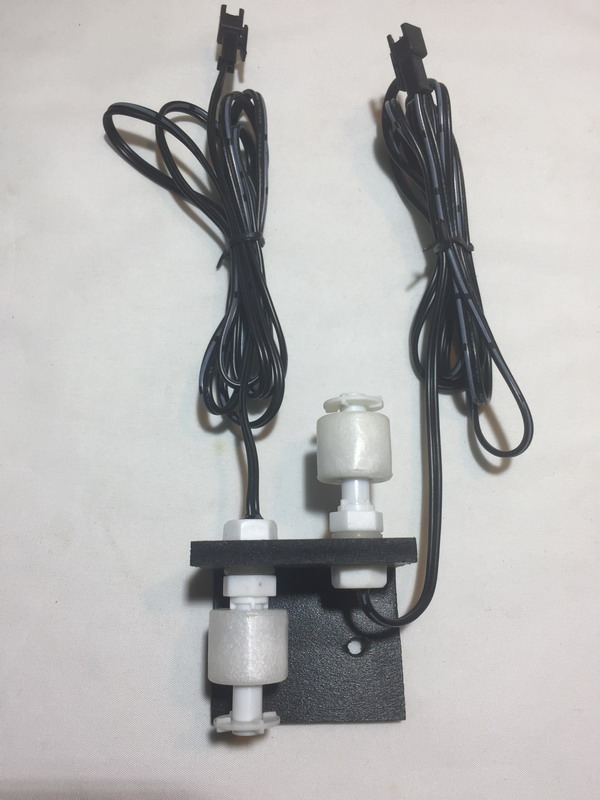

LongWire Combined
with JST connectors

1.8" x 2" x 2.25"h. 48" leads. The inverted float switch acts as the fail-safe. Angled plastic bracket includes two float switches and has 2 holes drilled in it for mounting.
$20

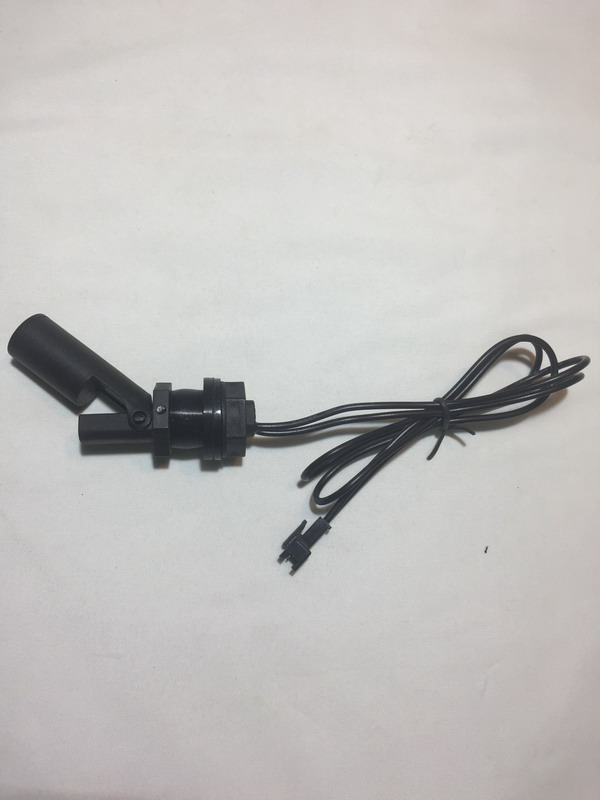

LongWire Horizontal
with JST connector

0.7 - 0.8” hole required for mounting (closer to 0.7 is a better fit). Your water level will be permanently set to approx 0.2” higher than the top of the hole. 2.5" extends into tank and 1" on outside of tank. 0.7" float diameter. 18" leads. Switch is closed when the float is straight and open when angled. Can be installed either normally open or normally closed.
$9

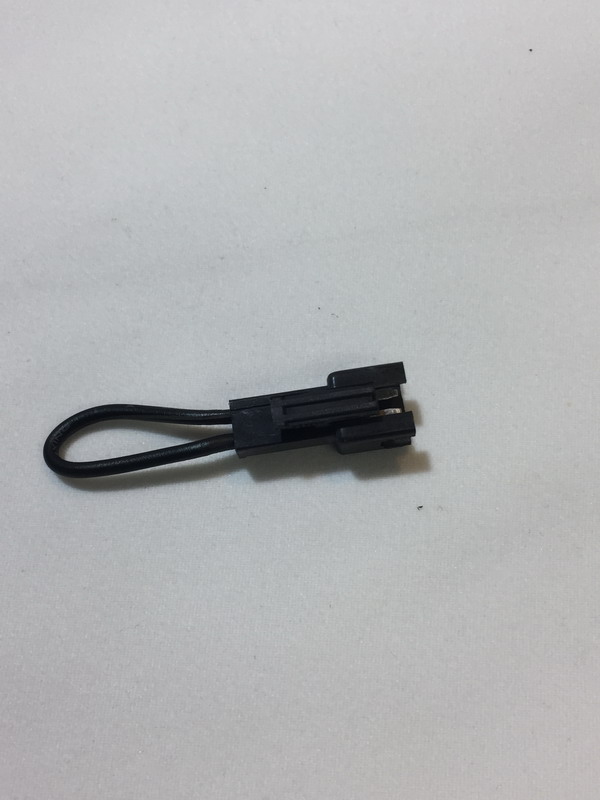

LongWire Jumper
Controllers will not operate unless you have float switches connected to all of the controller's float switch connectors. Use this in place of a float switch so the controller will still work.
$1

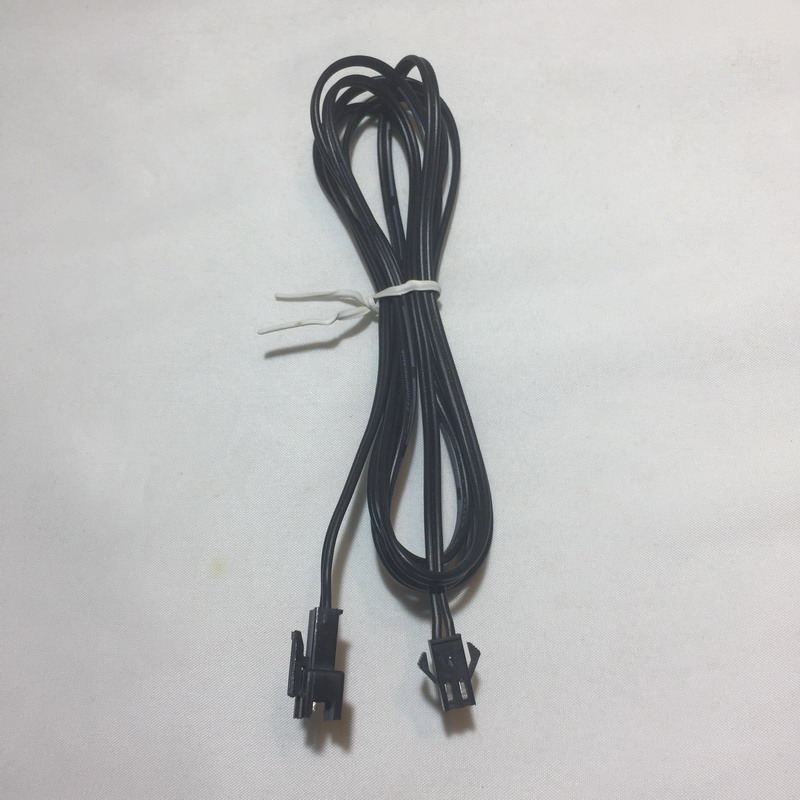

10' LongWire Wire Extension
10 feet long
$7
20' LongWire Wire Extension
20 feet long
$10

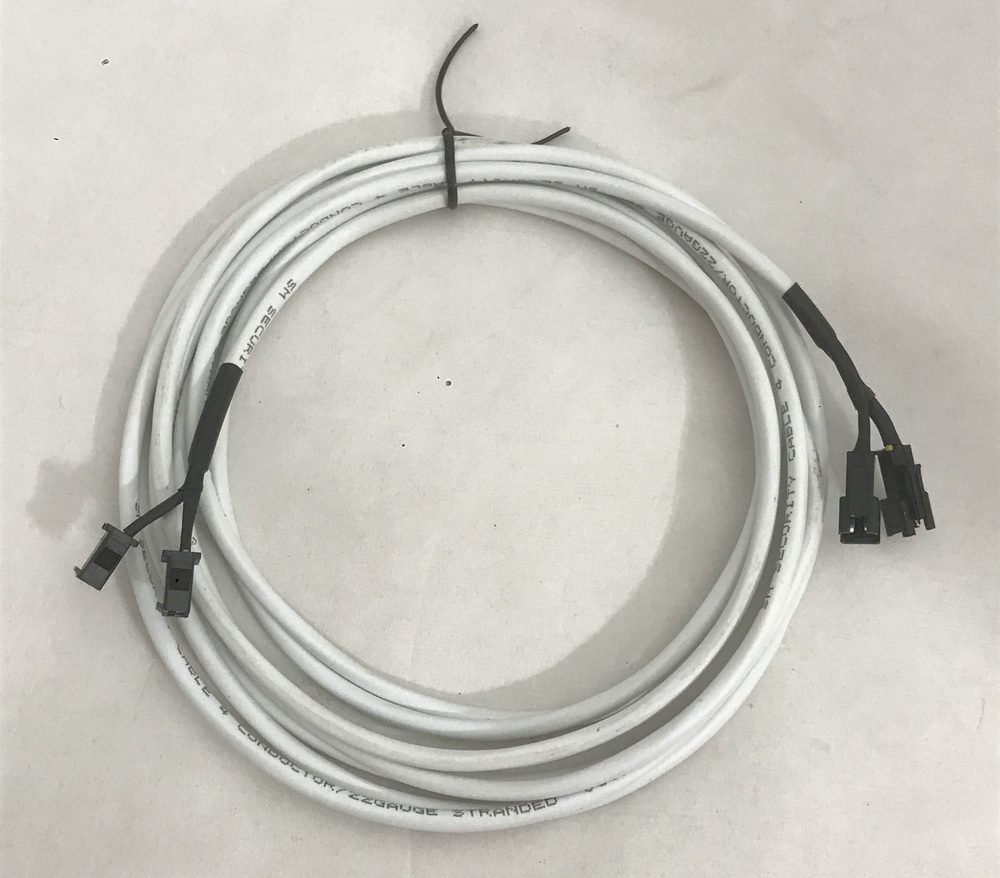

10' LongWire Wire Extension for 2 Float Switches
Extends two LongWire float switches with JST connectors on one extension cable. 10 feet long. White in color.
$12
20' LongWire Wire Extension for 2 Float Switches
Extends two LongWire float switches with JST connectors on one extension cable. 20 feet long. White in color.
$15
